Thunderbolt 3 USB C Docking Station

Short Description:

High quality Thunderbolt 3 USB C Docking Station factory from China, China's leading Thunderbolt 3 USB C Docking Station product market, With strict quality control USB C Docking Station factories, Producing high quality USB C Docking Station products....

Product Name: : 9 IN 1 USB-C HUB
Ports: : 9
Color: : Space Gray
Shell Material: : Aluminum Alloy
Function: : Charging+Data Transfer

Send email to us

Product Details

Product Tags

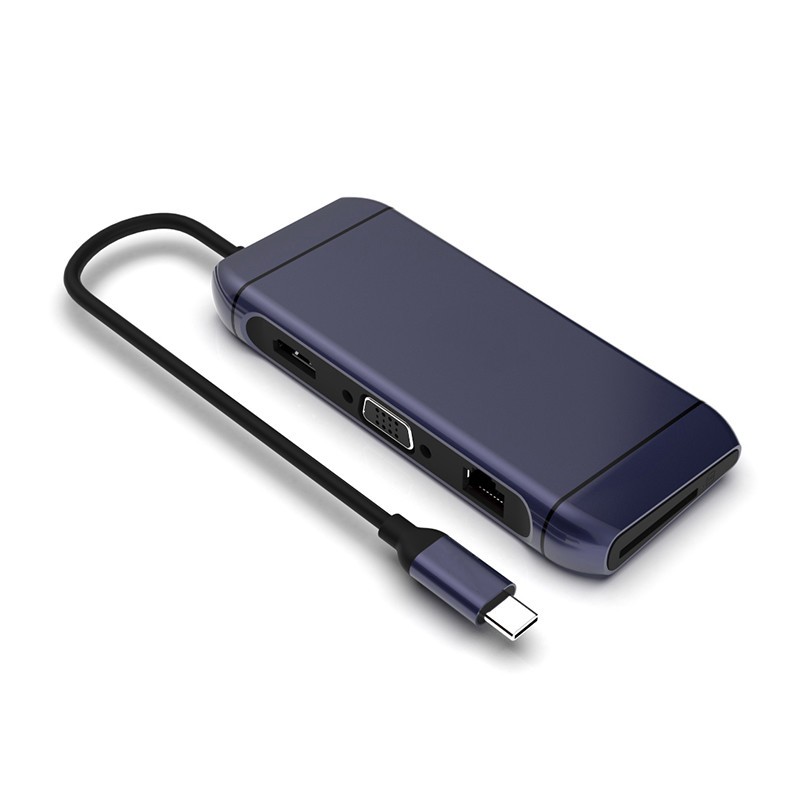

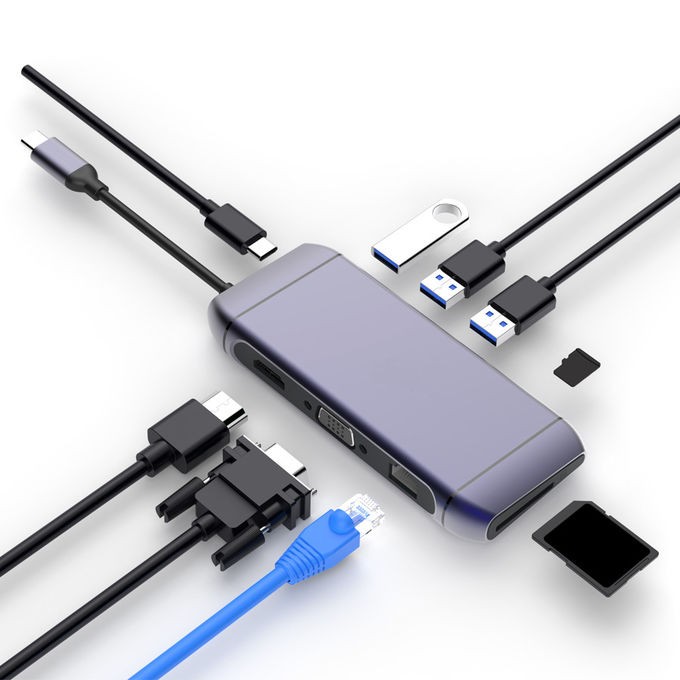

Aluminum Alloy 9 IN 1 USB-C HUB With 3.0 Port , PD Port , VGA Port , RJ-45 Ethernet Port, TF/SD Card Reader & HDMI Port Docking Station

Features
9-in-1 Multifunction USB-C Hub
Extend three Super Speed USB 3.0 port, one USB Power Delivery Type-C charging port, one HD output port , one VGA port, one RJ45 port,one TF and one SD card slot port from one USB-C port or Thunderbolt 3 (USB-C) port.
3 Super Speed USB 3.0 Ports
The 3 Super Speed USB 3.0 ports allow you to simultaneously connect up to three USB-A peripherals to a USB-C laptop and transfer data at up to 5 Gbps. Backward compatible with USB 2.0 and USB 1.1.
1 Power Delivery USB-C Port
Connect to a USB-C power adapter and charge the connected Power Delivery enabled USB-C laptop and the hub via its Type-C charging port while connecting multiple peripherals and transferring data,support 5-20V/1.5-3A fast charging.
HD Video Output Adapter
Enable you to mirror or extend the display of your laptop to your TV, monitor or projector in up to 4K UHD (3840x2160 @ 30Hz) resolution through the HD output port or to in up to HD (1920x1200 @ 60Hz) resolution through the VGA port. Backward compatible with 1080p/720p/480p/360p resolutions.
RJ-45 Gigabit Ethernet Adapter
Enable you to enjoy the ultra-fast Gigabit Ethernet speeds and the reliability of a wired connection directly. Support 10/100/1000BASE-T networks.

Video resolution (VGA port):

Up to HD (1920x1200 @ 60Hz) or 1080p/720p/480p/360p,the VGA port supports video resolution up to 1920*1080P / 60HZ. With the DP and HDMI ports, you can enjoy a highest resolution up to 3840*2160/30HZ. This USB C dock supports to connect 2 video display in mirror mode simultaneously like : 1* Mini DP + 1* HDMI supports up to 3840*2160 / 30HZ; 1* Mini DP + 1*VGA supports up to 1920*1080P / 60HZ.

But note: 1* HDMI + 1* VGA not supports to use at the same time.

SD / TF card reader

SD Card Reader and TF(Micro SD) Card Reader (Just read & write one at once.)

It is compatible with the SD / TF card. The speed of reading and writer depends on the quality of the card.

Portable and Easy-to-use
Thin, lightweight and compact. Ready to go right out of the box. No driver required. Plug and play. Support hot swapping function.

Note:
1. Make sure that the host USB-C port on your device complies with the USB 3.0/USB 3.1 specification.
2. To use the HD output port,the host USB-C port from your device must support Display Port Alt Mode.
3. To use the Power Delivery function to power and charge a connected USB-C laptop, the host USB-C port from your device must support USB-C Power Delivery. The USB-C input charging port can't be used for data transmission.
4. Please do not rely on the USB-A ports for charging your phones, tablets or other devices. The 2 USB 3.0 Type-A ports on the hub support a total output of up to 5V/900mA.
5. For a stable connection, do not use this hub with high power consumption devices. When connecting to a power source, it supports up to two hard drives.

Specifications:

Interface:	1* USB 3.1 Type-C Power Delivery charging port 3* USB 3.0 Type-A port 1* HD output port 1* VGA port 1* RJ-45 port 1* SD Card Slot 1* TF Card Slot
Video resolution (HD output port):	Up to 4K UHD (3840x2160 @ 30Hz) or 2K/1080p/720p/480p/360p
Data transfer rate:	Up to 5 Gbps
Card Reader:	Compatible with the SD / TF(Micro SD) card.
Power:	USB bus-powered
Ethernet transfer rate:	Support 10/100/1000 Mbps
Video resolution (VGA output port):	Up to HD (1920x1200 @ 60Hz) or 1080p/720p/480p/360p
Compatible USB-C devices (including but not limited)	For MacBook (12-inch) For MacBook Pro (13-inch & 15-inch) For Google Chromebook Pixel (12.85-inch) For Dell XPS 13 9350 (13-inch) / XPS 15 9550 (15-inch) For Lenovo Yoga 900 (13.3-inch) For Huawei MateBook (12-inch) For HP Elite Book Folio G1 (12.5-inch) For Microsoft Lumia 950 (5.2-inch) / Lumia 950XL (5.7-inch)
System requirements:	Windows 10/8/7/XP/2000, macOS X 10.0 or above operating systems
Warranty:	12 months
