Thunderbolt 3 USB C Docking Station

Short Description:

High quality Thunderbolt 3 USB C Docking Station factory from China, China's leading Thunderbolt 3 USB C Docking Station product market, With strict quality control USB C Docking Station factories, Producing high quality USB C Docking Station products....

Product Name:: 9 IN 1 USB-C HUB
Color: : Space Gray
Ports: : 9
Function: : Charging+Data Transfer
Shell Material: : Aluminum Alloy

Send email to us

Product Details

Product Tags

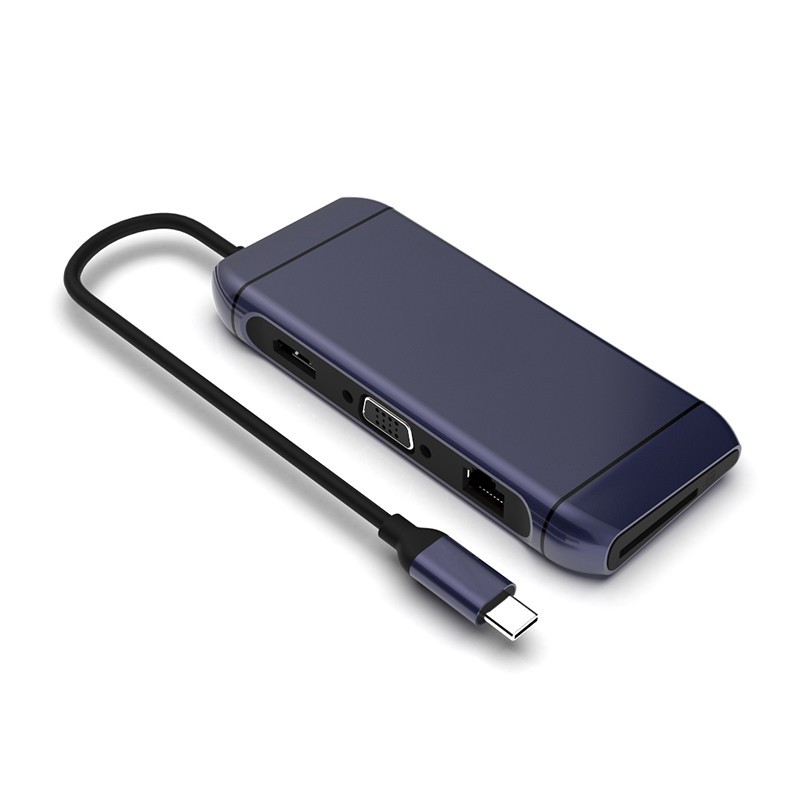

Aluminum Alloy 9 IN 1 USB-C HUB With 3.0 Port , PD Port , VGA Port , RJ-45 Ethernet Port, TF/SD Card Reader & HDMI Port Docking Station

Features
9-in-1 Multifunction USB-C Hub
Extend three Super Speed USB 3.0 port, one USB Power Delivery Type-C charging port, one HD output port , one VGA port, one RJ45 port,one TF and one SD card slot port from one USB-C port or Thunderbolt 3 (USB-C) port.
3 Super Speed USB 3.0 Ports
The 3 Super Speed USB 3.0 ports allow you to simultaneously connect up to three USB-A peripherals to a USB-C laptop and transfer data at up to 5 Gbps. Backward compatible with USB 2.0 and USB 1.1.
1 Power Delivery USB-C Port
Connect to a USB-C power adapter and charge the connected Power Delivery enabled USB-C laptop and the hub via its Type-C charging port while connecting multiple peripherals and transferring data,support 5-20V/1.5-3A fast charging.
HD Video Output Adapter
Enable you to mirror or extend the display of your laptop to your TV, monitor or projector in up to 4K UHD (3840x2160 @ 30Hz) resolution through the HD output port or to in up to HD (1920x1200 @ 60Hz) resolution through the VGA port. Backward compatible with 1080p/720p/480p/360p resolutions.
RJ-45 Gigabit Ethernet Adapter
Enable you to enjoy the ultra-fast Gigabit Ethernet speeds and the reliability of a wired connection directly. Support 10/100/1000BASE-T networks.

Video resolution (VGA port):

Up to HD (1920x1200 @ 60Hz) or 1080p/720p/480p/360p,the VGA port supports video resolution up to 1920*1080P / 60HZ. With the DP and HDMI ports, you can enjoy a highest resolution up to 3840*2160/30HZ. This USB C dock supports to connect 2 video display in mirror mode simultaneously like : 1* Mini DP + 1* HDMI supports up to 3840*2160 / 30HZ; 1* Mini DP + 1*VGA supports up to 1920*1080P / 60HZ.

But note: 1* HDMI + 1* VGA not supports to use at the same time.

SD / TF card reader

SD Card Reader and TF(Micro SD) Card Reader (Just read & write one at once.)

It is compatible with the SD / TF card. The speed of reading and writer depends on the quality of the card.

Portable and Easy-to-use
Thin, lightweight and compact. Ready to go right out of the box. No driver required. Plug and play. Support hot swapping function.

Note:
1. Make sure that the host USB-C port on your device complies with the USB 3.0/USB 3.1 specification.
2. To use the HD output port,the host USB-C port from your device must support Display Port Alt Mode.
3. To use the Power Delivery function to power and charge a connected USB-C laptop, the host USB-C port from your device must support USB-C Power Delivery. The USB-C input charging port can't be used for data transmission.
4. Please do not rely on the USB-A ports for charging your phones, tablets or other devices. The 2 USB 3.0 Type-A ports on the hub support a total output of up to 5V/900mA.
5. For a stable connection, do not use this hub with high power consumption devices. When connecting to a power source, it supports up to two hard drives.

Specifications:

Interface:	1* USB 3.1 Type-C Power Delivery charging port 3* USB 3.0 Type-A port 1* HD output port 1* VGA port 1* RJ-45 port 1* SD Card Slot 1* TF Card Slot
Video resolution (HD output port):	Up to 4K UHD (3840x2160 @ 30Hz) or 2K/1080p/720p/480p/360p
Data transfer rate:	Up to 5 Gbps
Card Reader:	Compatible with the SD / TF(Micro SD) card.
Power:	USB bus-powered
Ethernet transfer rate:	Support 10/100/1000 Mbps
Video resolution (VGA output port):	Up to HD (1920x1200 @ 60Hz) or 1080p/720p/480p/360p
Compatible USB-C devices (including but not limited)	For MacBook (12-inch) For MacBook Pro (13-inch & 15-inch) For Google Chromebook Pixel (12.85-inch) For Dell XPS 13 9350 (13-inch) / XPS 15 9550 (15-inch) For Lenovo Yoga 900 (13.3-inch) For Huawei MateBook (12-inch) For HP Elite Book Folio G1 (12.5-inch) For Microsoft Lumia 950 (5.2-inch) / Lumia 950XL (5.7-inch)
System requirements:	Windows 10/8/7/XP/2000, macOS X 10.0 or above operating systems
Warranty:	12 months

Thunderbolt 3 USB C Docking Station 0

Quality Control:
1. Original and 100% new
2. All tested one by one before shipping,we had a six primary colors test,and make sure all of our earphone for iphone is without dead spot and grey spot.
3. Products can run normally before sending
4. Products will be check again before shipment

Company Information:
1. Certificate:ROHS,CE,REACH
2. OEM Service and ODM Service
3. Excellent service on before-sale, on-sale and after-sale:
4. About our Market:Our products are widely accepted in countries in North America such as USA, Canada, in European countries such as UK, Germany, France, Netherlands, Greece, Sweden, Ireland, Swiss, Austria, Luxembourg, Belgium, Italy, Spain etc. and Russia.we also have successfully exported to Australia,Japan,Korea, South American such as Brazil,Chile,Argentina,India,Thailand, Turk
